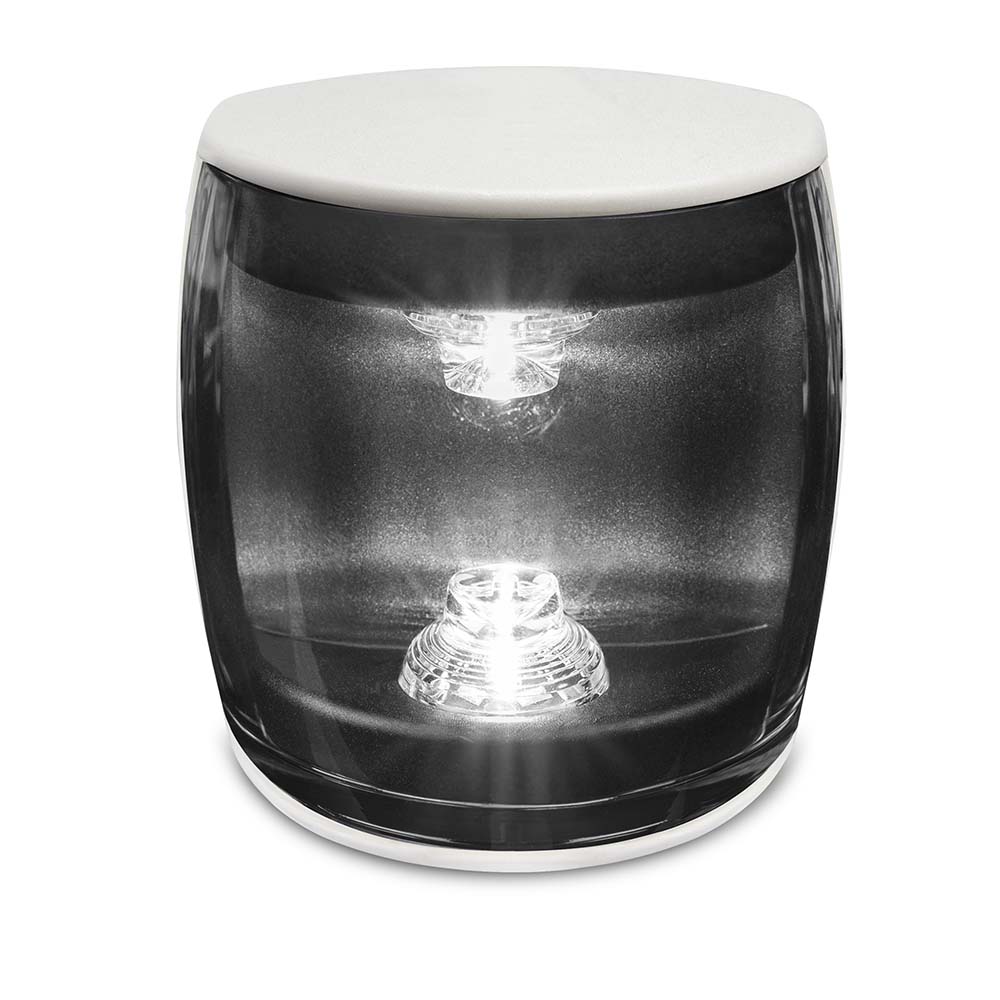

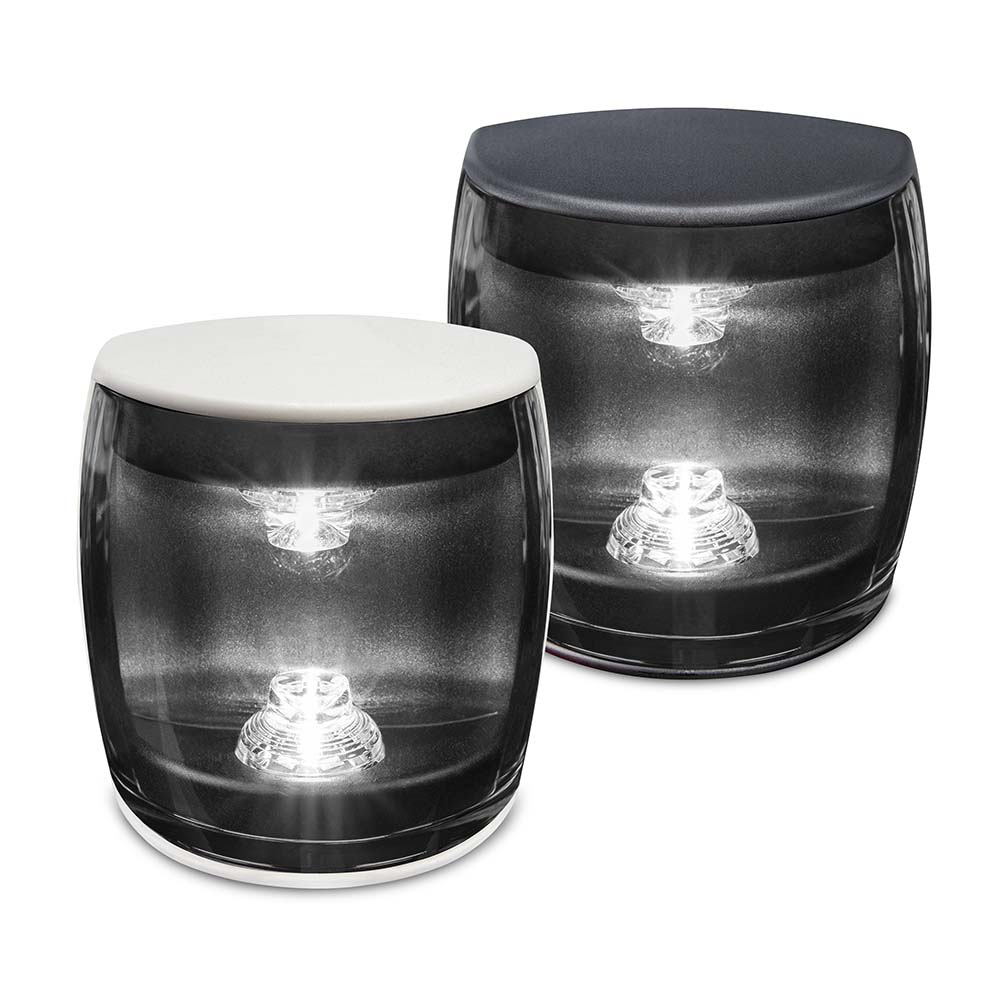

NaviLED PRO Masthead Navigation Lamp

Ultra durable, power saving LED navigation lamps for enhanced safety. NaviLED PRO lamps are proven worldwide on commercial, military and recreational vessels.

SKU: NaviLED Pro - Masthead Category: Tags: , , , , , ,

Hella marine NaviLED products are the leaders in the marine navigation signal lighting industry, having established an enviable reputation for superior light control and reliability.

NaviLED PRO Port, Starboard, Masthead and Stern lamps cover vessel requirements up to 50m (2 NM), and over 50m (3NM). Hella marine takes navigation lighting very seriously. Often a grudge fitment to comply with the rules, these lights are extremely important when navigating at night.

All Hella marine products are designed with components that suppress possible interference, both emission as well as susceptibility to emissions, to the limits prescribed in international standards. This prevents possible interference with radio, communication, navigation and other electrical equipment on board.

Hella marine lamps are rated at IP67 and completely sealed. UV from the sun, corrosive salt air and constant vibration: these lamps are impervious to the marine environment. Ultra low power consumption from the highly efficient LED light source, these lamps also provide exacting light intensity across a wide range of voltage inputs from 9V DC to 32V DC.

Made in New Zealand and fully supported by Hella marine’s 5 year warranty, for complete peace of mind.

NaviLED PRO is now compliant with ABYC C-5. Compliance details can be confirmed directly at the NMMA website. For further information regarding C-5, please contact your local regional representative.

Material Description Standard Lens: High impact resistant acrylic lens
Heavy Duty Lens: Heavy Duty Grilamid Lens. Impact Resistant Housing
Minimum Visible Distance 3NM: 3 Nautical Miles (Yachts and Powerboats)
5NM: 5 Nautical Miles (Yachts and Powerboats)
Cable 2.5m of twin core marine cable
Operating Voltage Multivolt™ 9-33V DC
Voltage Protection Spike protected to +500 volts. Reverse polarity protected to -700 volts
Power Consumption 3NM: Less than 2.5W (0.2A@12V)
5NM: 4W
Degree of Protection IP 67 – Completely Sealed
Weight 3NM: 250g (including cable)
5NM: 150g (including cable)
Approvals Standard Approvals: IMO COLREG 72, RINA, USCG, ABYC C-5, Maritime NZ
Wheelmark & Red Ensign Approved: Wheelmark (MED), IMO COLREG 72, USCG, ABYC C-5, Maritime NZ, CE, UKCA, Red Ensign
