DuraLED20/36 Heavy Duty Interior

DuraLED lamps provide powerful white light and a safe, energy efficient and reliable alternative to incandescent and fluorescent lighting. Available in 20 and 36 LED versions.

SKU: DuraLED20/36 Heavy Duty Interior / Exterior Lamps Category: Tags: , , , , , ,

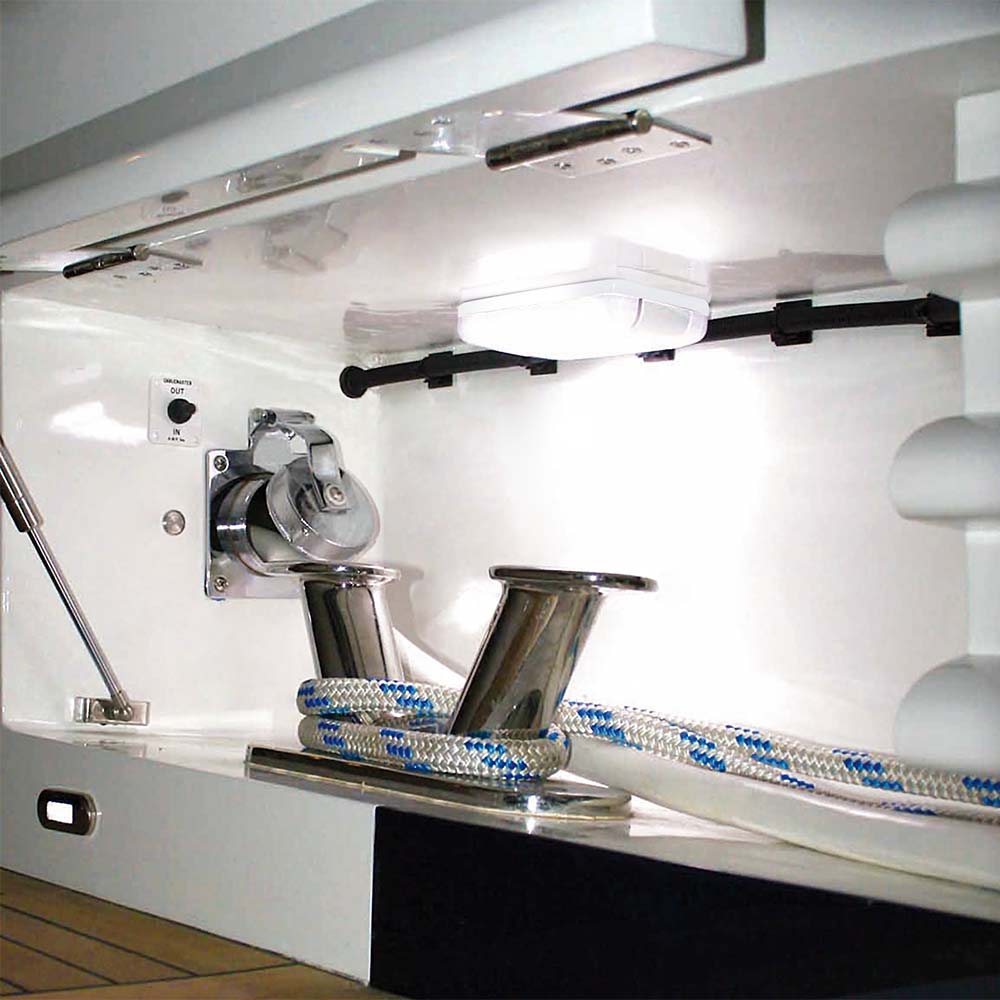

Purposely designed for engine rooms, storage lockers, lazarettes and many heavy-duty applications where reliability must not be compromised. Advanced Hella marine lens and optic engineering ensures an extremely wide spread of light without glare or harsh point sources. Product reliability is second to none, proven worldwide in thousands of highly demanding applications. Each lamp is completely sealed, impact resistant and shock resistant, ensuring an ultra long service life. Each lamp is pre-wired with 2.5m of twin core marine cable for time saving and completely sealed electrical connections. DuraLED20/36 lamps are surface mounted and feature a unique installation system where the fastening load is taken up by a heavy-duty nylon bush to eliminate possible stress on the lamp housing.

Low EMC noise ensures that these lamps won’t interfere with radio communications. Hella marine DuraLED20 and DuraLED36 lamps are completely sealed to ISO 8846 and have protection against ignition of surrounding flammable gases. This means they can be used in high-risk areas, interior and exterior, wet or dry locations. These lamps are impervious to the marine environment and can be fitted throughout the vessel, maintaining a consistent appearance. An efficient power consumption of 4W or 7W offers a ‘cool to touch’ lamp surface effectively reducing the risks associated with high temperature incandescent lamps.

Made in New Zealand and fully supported by Hella marine’s 5-year warranty, for complete peace of mind.

Lens Material UV resistant, enhanced impact acrylic
Voltage Protection Spike protected to +500 volts, Reverse polarity protected to -700 volts
Colour Temperature 6500K (White) DuraLED 20
5000K (White) DuraLED 36
Cable 2.5m of tinned marine cable
Operating Voltage Multivolt 9-33V DC
Power Consumption DuraLED20 <4W (<0.33A @ 12V / <0.17A @ 24V)
DuraLED36 <7W (<0.51A @ 12V / <0.28A @ 24V)
Degree of Protection IP67 (Completely Sealed)
Weight 345g (including cable)
Installation Surface mount with robust bush mount
Approvals CE, ISO 8846 (Ignition protection), RCM, UKCA
