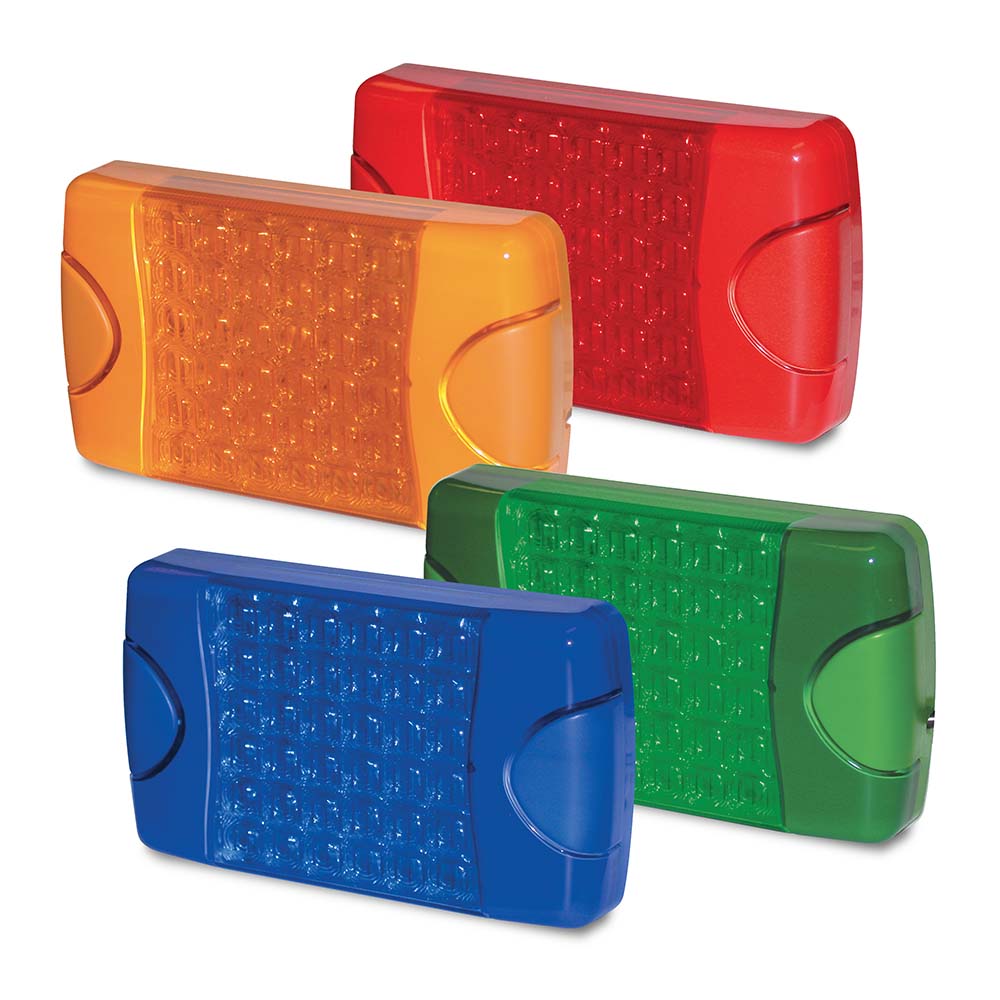

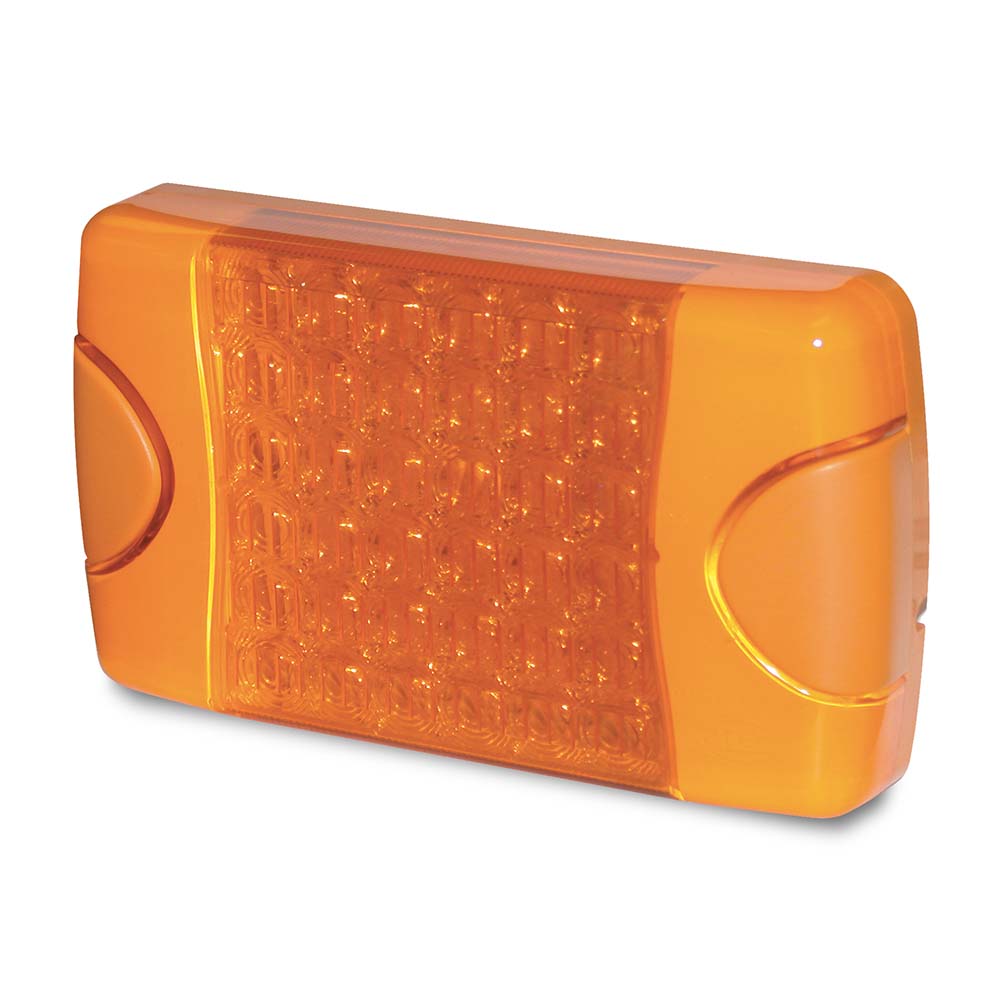

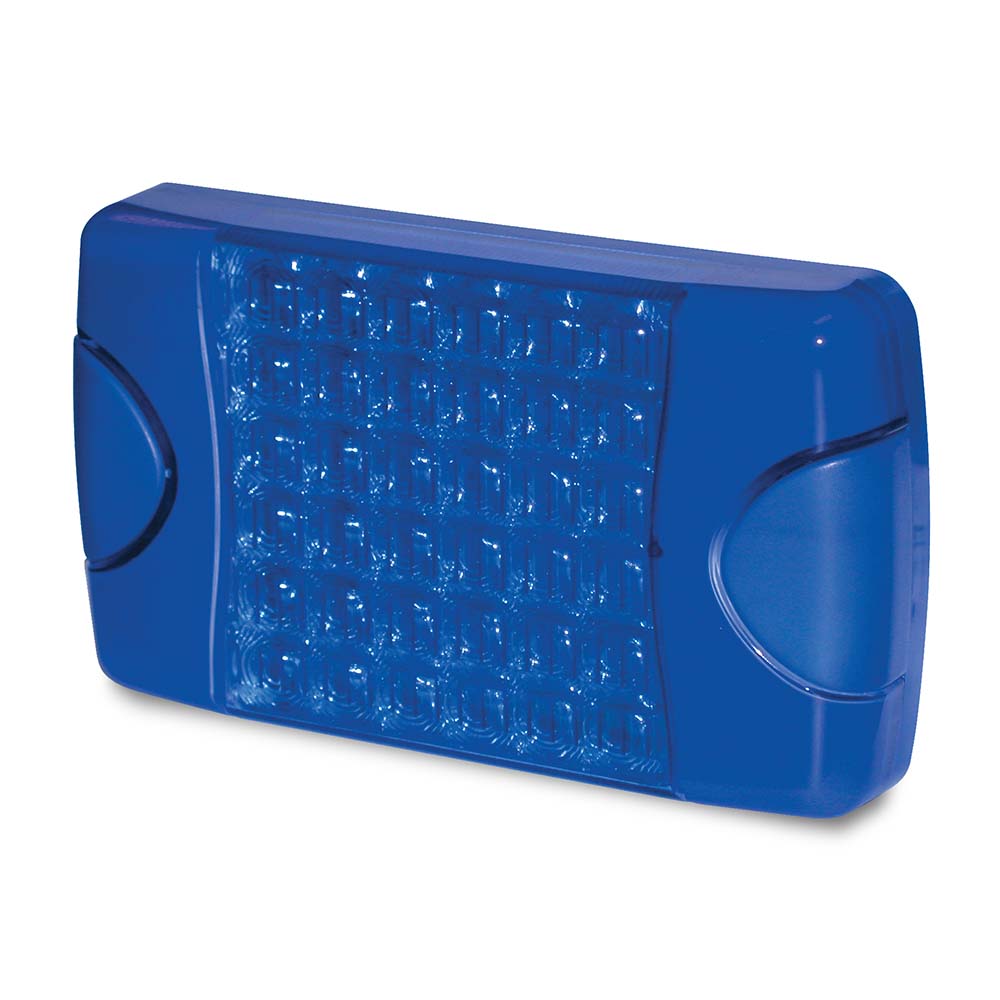

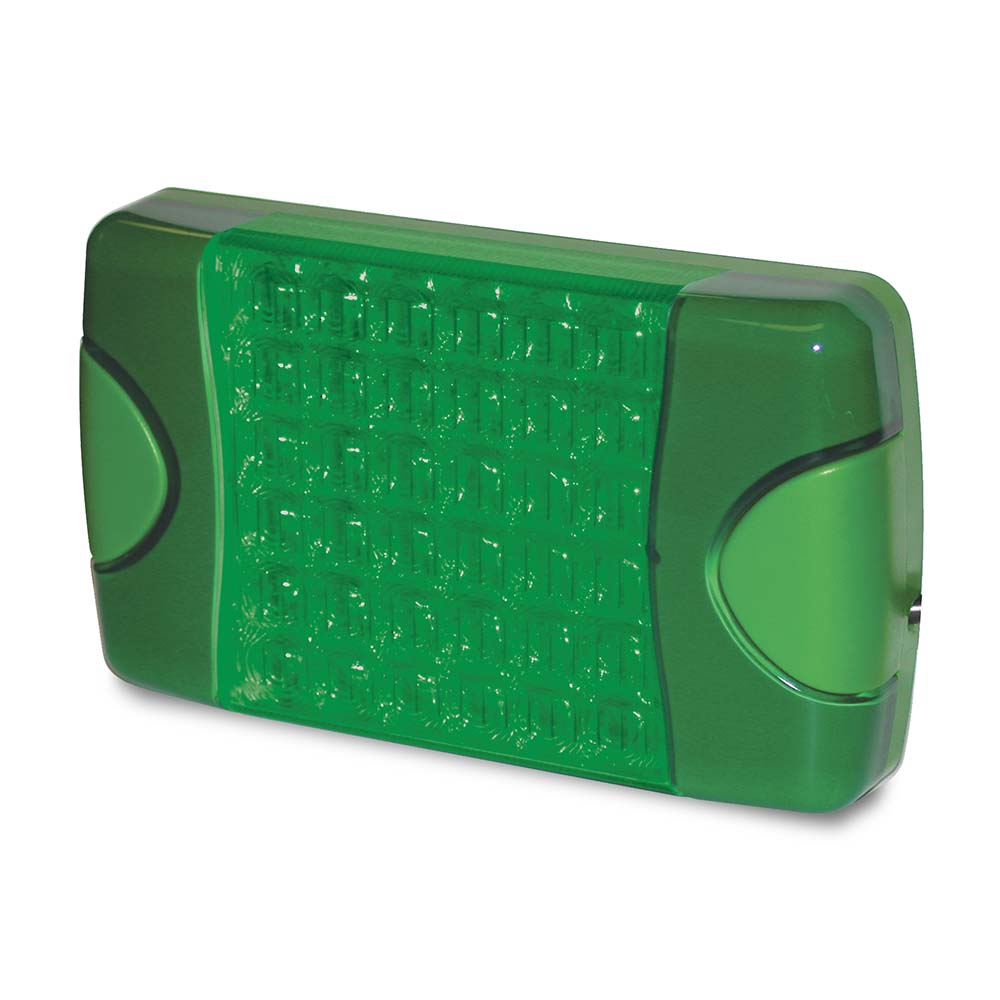

DuraLED Multi-flash Signal Lamps

Multi-purpose All round signal lamps with programmable flash modes and synchronization options. Coloured Lens and LED.



SKU: DuraLED Multi-flash Signal Lamp Categories: ,

Multi-purpose signal lamps with robust housings, 10 programmable flash modes and the ability to be synchronised to flash alternately or in unison.

Each lamp is a completely sealed unit. Proven design, precision engineering and the use of high impact acrylic materials ensure superior resistance to water, impact, UV and wear and tear. Advanced Multivolt™ circuitry provides reliable illumination across a range of DC inputs from 9-33 volts even during low battery voltages and voltage drop over long cable runs.

Material Description Heavy duty acrylic lens
Cable 2.5m of multi core cable
Operating Voltage Multivolt™ 9-33V DC (12/24V DC Nominal)
Voltage Protection Spike protected to +500 volts
Power Consumption <9W (<0.75A@12V / <0.375A@24V)
(Continuously on) Less in flash modes
Degree of Protection IP 67 (Completely Sealed)
Weight 345g (including cable)
Approvals CE, RCM, ECE R10

Description

Documents
